Dynamic Funnel Chart

by
Bert van Zandbergen
The Netherlands

Based on this file:
bert1
Figure 1

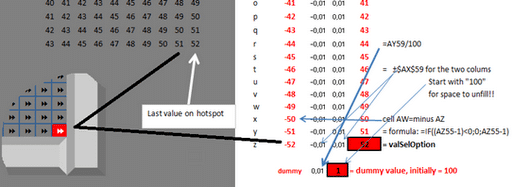

Start with the 4 columns. The dummy had to be 100 or more for space to unfilled dummy bars. Delete the lines. Now you can change the value from “100” to “1”. Further information is visible in Figure 1.

Hyperlink:
Read also the information and explanation on the website of Chandoo.org
http://chandoo.org/wp/2011/07/20/interactive-dashboard-using-hyperlinks/

7be1b bert2
Figure 2

Place a hyperlinks in the cells of the hotspot – see above.

c5fca bert3
Figure 3
Formula: Define the hotspot with the name: “ valSelOption”
75b95 bert4
Figure 4
Go to VBA and insert a module. For more information about the instruction – see on this website, the Chandoo website and the module above.
72e00 bert5
Figure 5 — Chart with hotspot
The hotspot is based on 10 columns combined with 42 rows. – see figure 5/6. The hotspots are linked by hyperlinks with corresponding cells in columns AI:AR.  For a special effect and an easy crossover the values are placed in a diagonal figure

See: Figure 5/6

ebf10 bert6
Figure 5 — The “hotspot”

Above the hotspots and the linked cells. Special formed to make an easy crossover.

***
A big thank you to Bert – hopefully there will be more contributions in the future!
